Key Features & Specs
The Next Generation Landoll has Arrived!
The Landoll Trailer Line is taking a huge leap forward with the introduction of the all-new hydraulic operating systems, nicknamed H.O.S.S., and High Visibility Lighting package. The 440 and 455 “B” Series Traveling Axle trailers are the first models with these added standard features.
H.O.S.S. cuts the overall operational time in half. The axle traveling forward has increased by 36% and moving back by 58%. Tilt deck positioning has increased to nearly 63%, while winch in and out speeds are closer to 66%. This improvement will allow for more loads to take place.

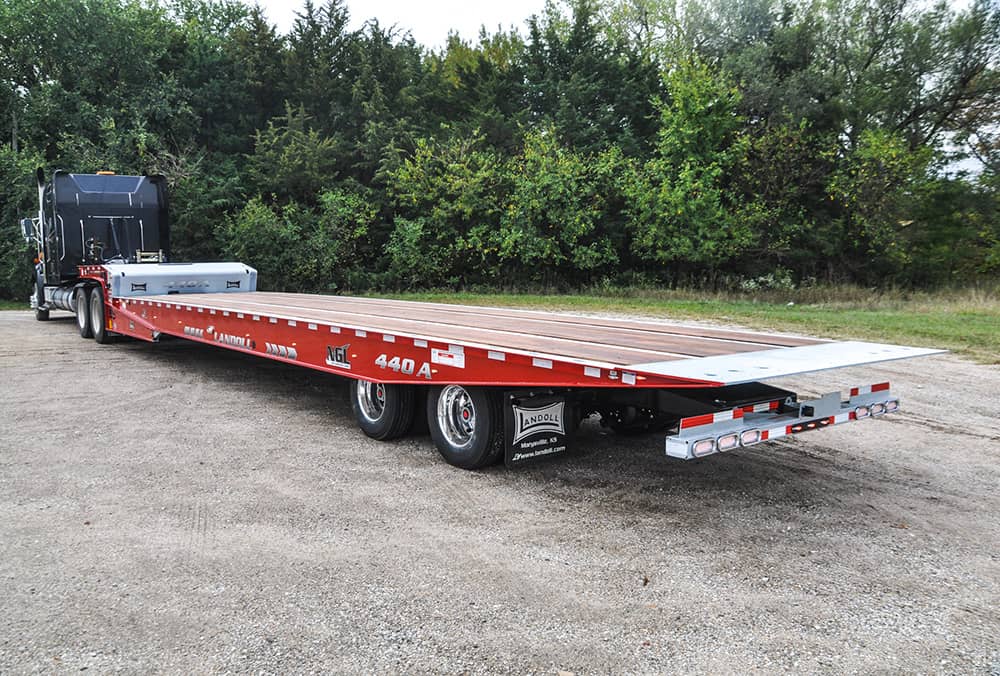

The Landoll 440B is a tandem axle trailer with a capacity of up to 40 tons. It is available in 41′, 48′, 53′, and California legal 50′ lengths. Handle tough equipment including super low clearance pavers with an easy one-man operation.
- Handle tough equipment including super low clearance pavers with an easy one-man operation. The Landoll 440B is a tandem axle trailer with a capacity of up to 40 tons.
- + Expand All
- - Close All
Model Capacity Base Weight Length Deck Axles Tires and Ply Rating 440B-41 40 Ton 16,820 lbs. (+/- 3%) 40-10 102 2 (8) 235/75R 17.5 LRJ Double Coin 440B-45 40 Ton Consult Factory 44-10 102 2 (8) 235/75R 17.5 LRJ Double Coin 440B-48 40 Ton 18,575 lbs. (+/- 3%) 47-10 102 2 (8) 235/75R 17.5 LRJ Double Coin 440A-50CA 40 Ton 19,355 lbs. (+/- 3%) 49-10 102 2 (8) 235/75R 17.5 LRJ Double Coin 440A-53 40 Ton 19,610 lbs. (+/- 3%) 52-10 102 2 (8) 235/75R 17.5 LRJ Double Coin
- Hydraulic Hook Up: Quick Couplers 2,500 PSI – 20 GPM at Controls, 50 GPM Max
- Tilt Cylinders: (2) 6 x 30
- Hydraulic Winch: 12,000 lb. Worm Gear with Spring Tension and 85 of 1/2 Cable
- Hydraulic Valve Body: Rexroth
- Air / Electrical: 7-Way Receptacle
- Lights: Grote MicroNova LED Clear Lens-Enhanced Stop, Tail & Turn; Rear Amber Strobe (10-Year Warranty)
- Wiring Harness: Grote “Xtreme” Wiring Harness (7-Year Warranty)
- Turn Signal: Center Mounted Turn Signal
Suspension and Undercarriage
- Suspension: Neway Air Ride RLU228, 22,500 lb. Capacity
- Undercarriage: (2) 4 x 126 – 48; 4 x 126 and 4 x 138 – 50; 4x 138 – 53; Accepts After-Market Dock Level Hydraulics System; Powder Coated Black
- Grease: Centralized Grease System
- Axles: (2) 25,000 lb. Axles, Dual Tire, Oil Bath Bearings, Automatic Slack Adjusters
- Axles Prepped for Air Inflation
- Brakes: 12.25×7.5 Full Air / Spring Brakes ABS, 4S2M
- Tires: 235/75R 17.5 LRJ Double Coin Tires
- Rims: 17.5×6.75 Tubeless Rims
- Wheels: Hub Pilot / Steel Outboard Brake Drums
- Oil Seal Hubs: Internal Mated Assembly
- Capacity: 40 Tons
- Deck Width: 102
