Key Features & Specs

Maximize Payload and Profitability

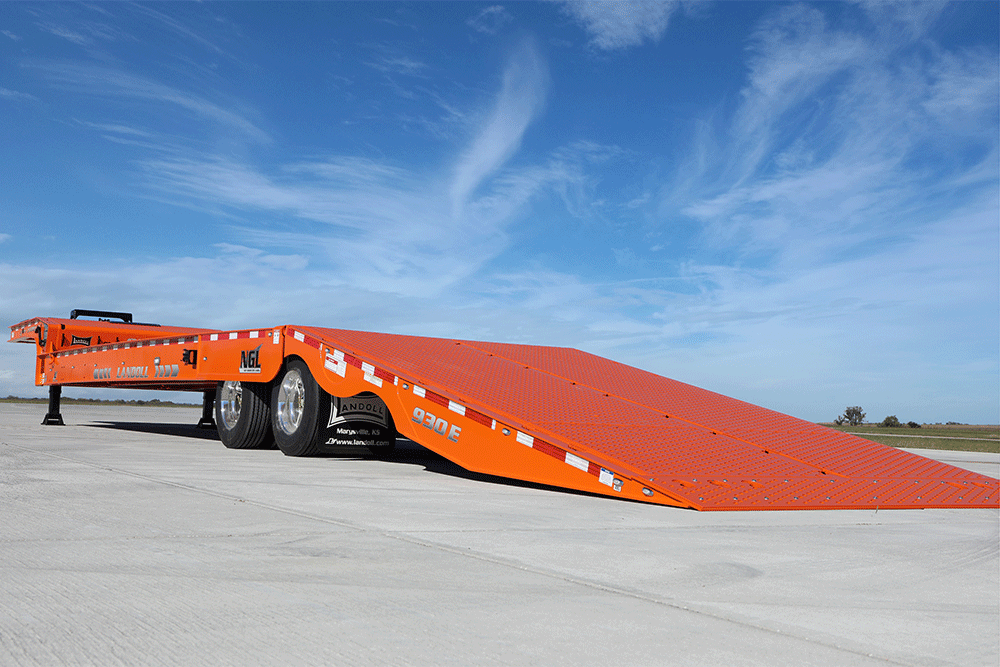

The Landoll 930E Traveling Tail is part of the 900 E Series trailers. The tail is capable of lifting 24,000# up to 53″ dock height. Maximize your loads by utilizing the entire deck and maximize your payload by having the undercarriage five feet behind the main hinge. The longer wheelbase gives you proper weight distribution between tractor and trailer and fully supports the tail.

The traveling tail concept allows for stable dock loading and increases your payload by having a longer wheelbase.

Why Own a 900 E Series


Quick, simple, safe operation and a longer wheelbase that increases payload. A 15′ tail reduces the load angle to a low 11°. Frames are steel shot blasted in preparation for the TGIC polyester powder coat paint finish standard on 900 Series trailer. The tail can raise and lift 24,000 lbs up to 57″ dock height. The 900 E Series is backed by a 5-year structural warranty.

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.
  • Maximize your loads by utilizing the entire deck and maximize your payload by having the undercarriage five feet behind the main hinge.
  • The Landoll 930E Traveling Tail is part of the 900 E Series trailers.
  • The tail is capable of lifting 24,000# up to 53″ dock height.
  • + Expand All
  • - Close All
  • Specifications
    Model Capacity Base Weight Length Tail Length Deck Axles Tires and Ply Rating
    930D-45-12 35 Ton 17,265 lbs. (+/- 3%) 45 12 102x 35’3 2 (8) 235/75R 17.5 LRJ Double Coin
    930D-48-12 35 Ton 17,660 lbs. (+/- 3%) 48 12 102x 38’3 2 (8) 235/75R 17.5 LRJ Double Coin
    930D-48-15 35 Ton 18,770 lbs. (+/- 3%) 48 15 102x 38’3 2 (8) 235/75R 17.5 LRJ Double Coin
    930D-51-15 35 Ton 19,250 lbs. (+/- 3%) 51 15 102x 41’3 2 (8) 235/75R 17.5 LRJ Double Coin
  • Suspension and Undercarriage
    • Suspension: Neway Air Ride RLU228, 22,500 lb. Capacity with Manual Dump Valve
    • Undercarriage: Centralized Grease System
    • Axles: (2) 25,000 lb. Axles, Dual Tire, Oil Bath Bearings, Outboard Brake Drum, Automatic Slack Adjusters
    • Axles Prepped for Air Inflation
    • Brakes: 12.25×7.5 Full Air / Spring Brakes ABS, 4S2M
    • Tires: 235/75R 17.5 LRJ Double Coin Tires
    • Rims: 17.5×6.75 Tubeless
    • Wheels: Hub Pilot / Steel Outboard Brake Drums
    • Oil Seal Hubs: Internal Mated Assembly
  • Electrical
    • Air / Electrical: 7 Way Receptacle
    • Lights: Grote MicroNova LED Clear Lens-Enhanced Stop, Tail & Turn; Rear Amber Strobe-10 Year Warranty
    • Wiring Harness: Grote “Xtreme” Wiring Harness (7-Year Warranty)
  • Hydraulics
    • Hydraulic Hook Up: Quick Couplers / 2,500 PSI – 20 GPM at Controls, 50 GPM Max
    • Hydraulic Winch: Upper Deck 12,000 lb. Worm Gear with 8 of 1/2 Cable with Wear Plate
    • Hydraulic Valve Body: Rexroth
  • Frame and Features
    • *Capacity: 35 Ton (70,000 lbs.)
    • Deck Rating: 50,000 lbs. in 10
    • Estimated Base Weight: 16,300 lbs. (48) +/-3%
    • Main Frame: Fabricated 80,000 PSI Yield 4-Beam Design
    • Crossmembers: 4 Junior I-Beam and 3 Junior I-Beam on 8 Centers
    • Slope Drop: 90°
    • Parking Stands: Jost Two Speed Landing Gear
    • Pin Setting: 18
    • Swing Clearance: 84
    • Hitch: Fifth-Wheel Kingpin
    • Deck Width: 102
    • Loaded Deck Height: 38
    • Loaded Ground Clearance: 20
    • Decking: 1-3/8 Nominal Apitong (Lower Deck)
    • Tool Box: Twin Upper Deck Mounted Top-Opening with Non-Weight Bearing Lid Illuminated
    • Tie Downs: Double Key Hole Chain Slot / Gotchas on 16 Centers / (6) Double Keyhole Chain Slots on Tail / (2) D-Rings Lower Slope at Deck
    • Tail Lifting Capacity: 24,000 lb.
    • Load Angle: 11° with 15 Tail
    • Features: Automatic Slack Adjusters, Flat Approach Plate, Apitong Wood Covered Tail, Center Deck Keyholes on Tail, Bolt-On Traction Plate Over Approach Plate
  • Capacity: 35 Ton
  • Deck Width: 102"
